Quick Details

  • Condition: New
  • Type: ISO
  • Material: carbon/stainless steel
  • Material Feature: Heat Resistant
  • Structure: round separator
  • Load Capacity: large as you required
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: XinXiang TongXin
  • Model Number: XZS400---XZS2000
  • Voltage: 220/380V
  • Power(W): 0.25-3.7kw
  • Dimension(L*W*H): Diameter 400-2000mm
  • Certification: ISO9001:2008
  • After-sales Service Provided: Engineers available to service machinery overseas
  • round saparator machine Construction: Carbon steel, stainless steel
  • Diameter: 400-2000mm
  • Screen mesh: 2-500 mesh
  • round saparator machine Deck: 1-5
  • round saparator machine Type: Circular/round
  • round saparator machine Motor: Single vertical motor
  • Application: Classification, Filteration, Washing

Packaging & Delivery

Packaging Details: standard export packing
Delivery Detail: 7-15 working days after we receive the payment


Electric Three dimensional rotary vibrating screen

   Product introduction:
rotary screening trommel

Capacity : vary from materials, can be designed according to your demand

Layer : 1-5

The mesh size : screen up to 325mesh

Power: 0.25-3.7kw



Application : S creen   any  powder , granule or mucus   material.widely used in many industries.



Features : high screening efficiency,screen up to 500 mesh (0.028mm),with bounce ball to clean mesh when screening,automatic discharge of impurities and coarse materials,continuous operation,ISO9001:2008 & CE certification.

   Product Specification:



from TONGXIN
Simple description below
Product rotary screening trommel
Item Number XZS
MOQ Usually 1 set
We can meet customer's special demands.
Function screening, grading,impurity,filtering,classification
Materials Contact part stainless steel,other part carbon steel / all carbon steel / all stainless steel, etc
Colors Custom paint color
Feature Made of the best materials with first-class workmanship
Customized Design Yes; (over 19 years experience of designing & producing)
Logo Your own logo is available
Packing As needed
Delivery time 2-45 days
Payment terms T/T, L/C
Shipment port Shanghai/ Tianjin/ Qingdao/ Dalian
Certificate CE,ISO,JB/T
REMARK: 1. Remote control available.
2. Safety device, such as, E-stop, working light, warning system
3. Motor driven
4. Various load capacity



   Product Details:





rotary screening trommel main components

(1)outlet

(2)shield

(3)bounce ball

(4)mesh frame

(5)vertival vibration motor

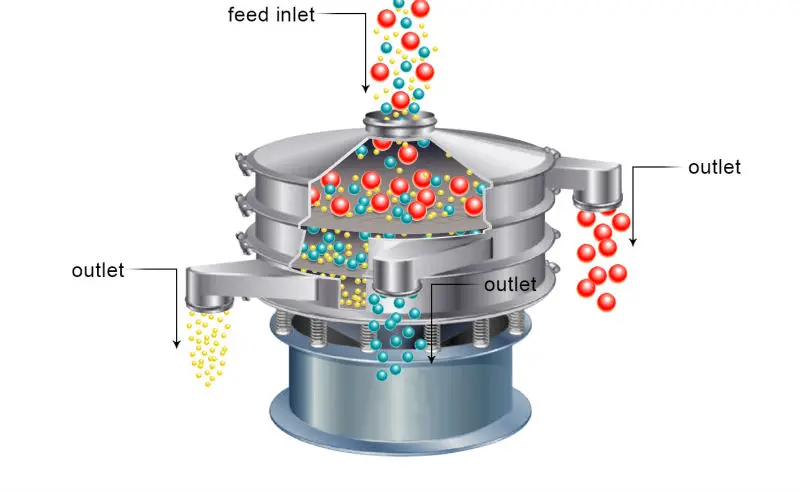

motion of motor & motion trails of materials on screen surface





rotary screening trommel applicable industries



Chemical industry:   resin pigment,

medicine,  grease, paint, palette, etc.

Abrasive material and ceramic industry:

building sand, mica, alumina,  abrasive,

refractory material, slurry, etc.

Food industry:   sugar, salt, alkali,

gourmet  powder, starch, milk powder,

yeast powder , pollen, food additive,

bean milk, juice, etc.

Papermaking industry:   coated slurry,

exhaust  liquid, paper making liquid and

waste water  reclamation, etc.

Metallurgy and mining industry:  quartz

sand,o re, titanium oxide, zinc oxide, etc.   Mechanical industry:  casting sand,

powder  metallurgy, electromagnetic

material and  metal powder, etc.





   Technical Parameter:



Item rotary screening trommel
Model 400-2000
Effective screening surface diameter (mm) Φ330-Φ1886
Effective screening area (mm²) 450 mm
Screen specifications (mm) screen up to 0.028mm
Layer 1-3,1-5
vibration motor power (kw) 0.25-3.7kw
general motor power (mm) 350 mm



    Production Process:





    Shipping & Package:


    Our company:

Xinxiang Tongxin Machinery Limited Liability Company

1.We have founded our company since1995
2.Has almost 20 years professional history in manufacture
3.Our company is the ISO9001:2008 and CE authentication enterprise
4.Fixed assets investment is 2 million CNY
5.Customized as you request( vibratng screen machine, conveyor , elevator , feeder,test equipment, test sieves,wire mesh) 6.Our company's business objective is: innovative, high quality but low price,good services, and with customer satisfaction
7.We have owned the brand of Tongxin, which also means everything is possible when we work together with our heart.



 Our customers visited our factory

    Certificate:




    Contact Us:

  Xinxiang Xinxiang Tongxin Machinery Limited Liability Company
Guguzhai Industrial Cluster ,Xinxiang, Henan, China (Mainland)
Tel: 86-373-3333922 Fax:86-373-3333922
TM: xxtxjx Skype: lily.lee182
